Discover the Floorwarmers Electric Underfloor Heating Mat Kit, a versatile underfloor heating solution designed to offer a blend of efficiency and luxury to your home or business. Recommended by trade professionals, this system offers exceptional reliability and hassle-free installation under tile, stone, ceramic or similar flooring, integrating effortlessly into your existing floor design.

Ideal for bathrooms, bedrooms, kitchens and conservatories, the Floorwarmers electric underfloor heating mat delivers unparalleled comfort, enhancing any space it's installed within.

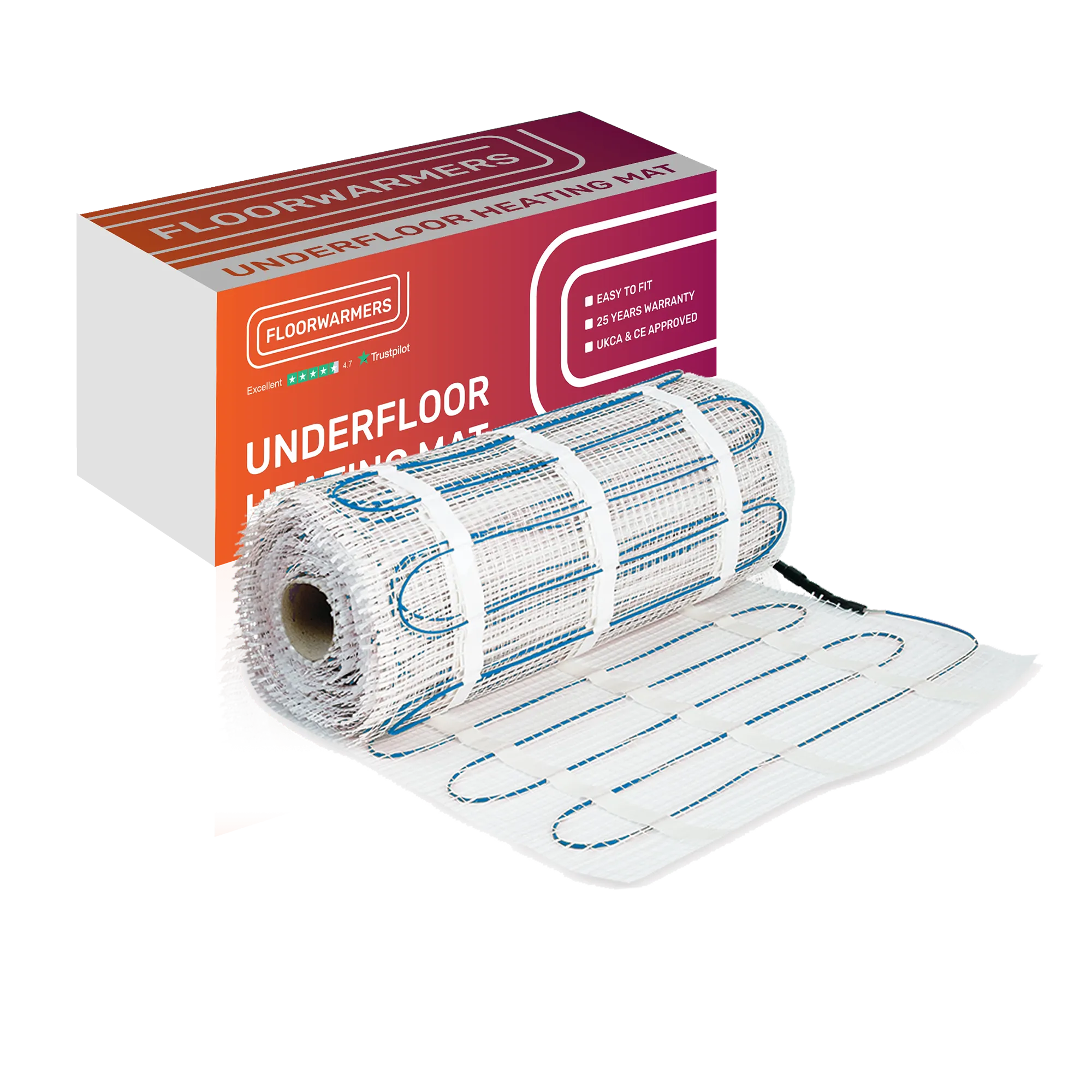

This state-of-the-art heating system is made up of two crucial components - a 3mm heating wire that is evenly spaced for optimal heat distribution, on top of a durable sticky glass fibre mesh mat with a strong self-adhesive backing, allowing for the quickest, most secure installation of this system.

The Floorwarmers electric underfloor heating mat kit is available in three distinct wattages to meet your specific heating needs:

• 100W Electric Underfloor Heating Mat - Perfect as a primary heat source in new constructions or a secondary source in older homes
• 150W Electric Underfloor Heating Mat - Ideal for warming bathrooms, kitchens and other living spaces, serving effectively as the primary heat source in any room it's installed
• 200w Electric Underfloor Heating Mat - Provides a 25% faster warm-up time, outperforming other wattage options. This version is ideal for areas with high heat loss, such as conservatories or rooms that you want to add that extra bit of heat to!

By opting for Floorwarmers, you are choosing affordability without compromising on quality. Our underfloor heating solutions offer excellent value for money, allowing you to enjoy the comfort and luxury of heated floors at an affordable price point. Elevate your home with the Floorwarmers Electric Underfloor Heating Mat Kit and experience the ultimate warmth and comfort throughout your living space.

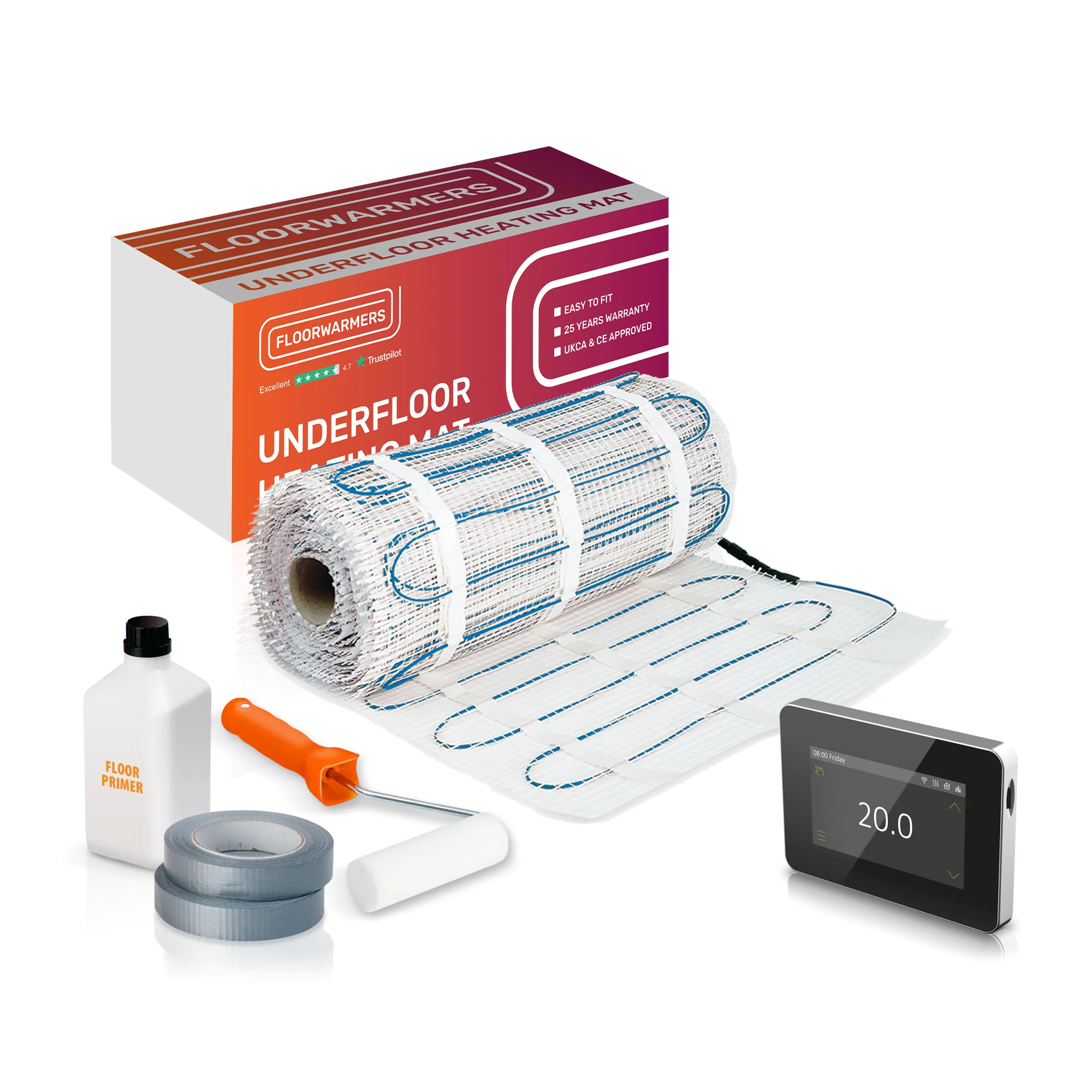

• Underfloor Heating Sticky Mat (Two individual mats if kit size over 12m2)
• Floor Primer - a high-performance universal priming/sealing agent suitable for plaster, timber, brick, and block work.

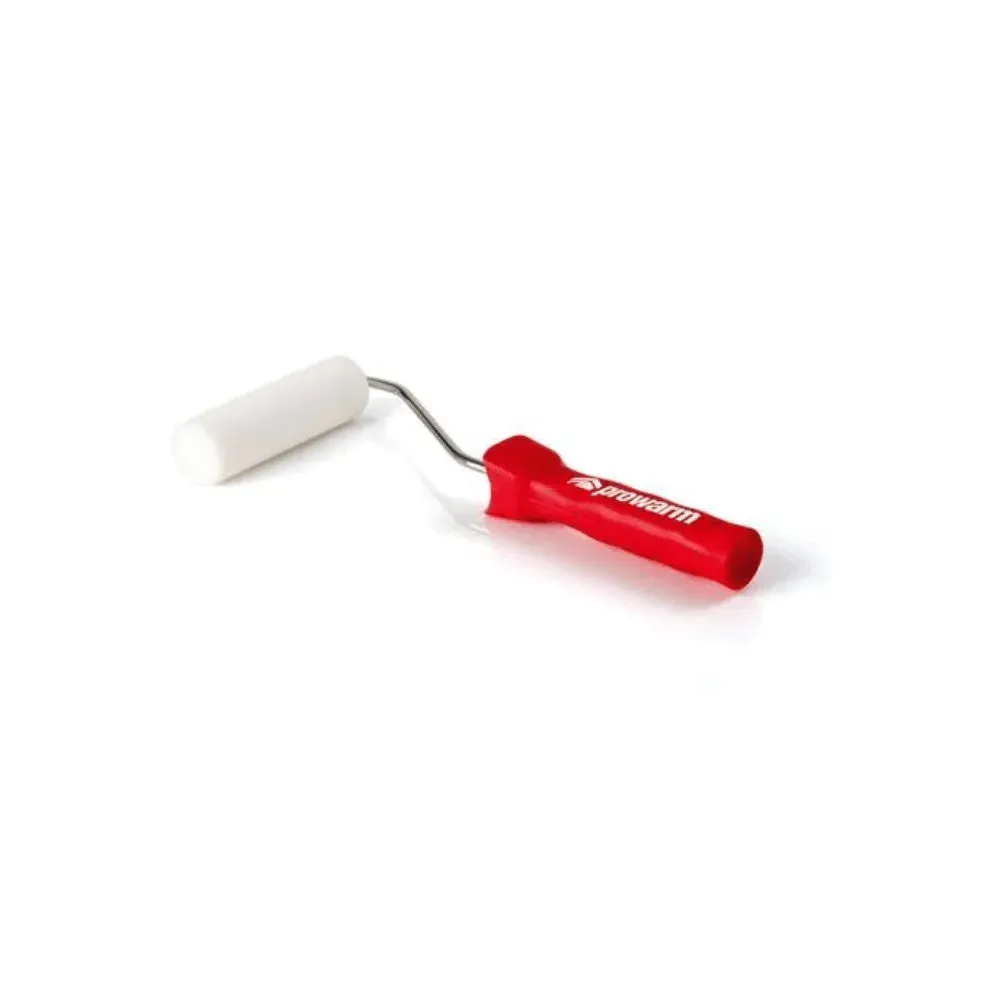

• Roller - a high-quality roller for applying floor primer to the subfloor

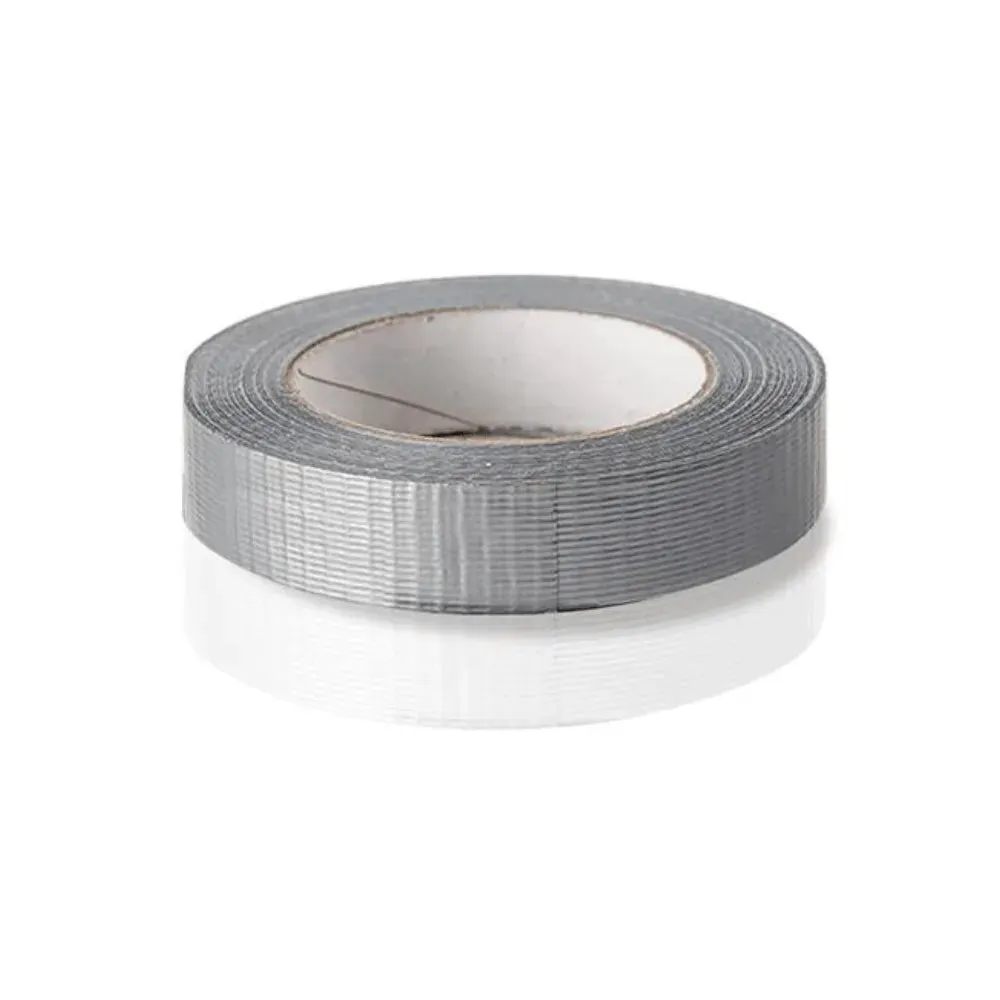

• Adhesive tape - works to assist in holding a mat or cable in position during installation
• 2m Floor Sensor Probe Conduit - provides a protective pathway for the sensor probe, connecting to your thermostat
• Digital thermostat (if selected) - adjust the heat settings and enjoy warm floors through a simple touch of a button


Specifications

• Cable type options: Twin wire cable 100w/m2, 150w/m2, 200w/m2
• Cable thickness: 3mm
• Mat width: 500mm
• Warranty: 25-year manufacturer warranty
• Tested: 100% earth screened
• Cold tail length: 2m
• UKCA and CE APPROVED

Installation

Please Note: This is a brief guide. Always refer to the full installation manual for comprehensive instructions.

1. Plan Your Layout:

• Divide the floor into a series of rectangles. Use these measurements to calculate the number and sizes of mats needed, excluding permanent or static fixtures from your calculations.

2. Prepare the Subfloor:

• For screed over concrete floors, lay insulation boards to minimize heat loss and ensure quicker warm-up times.

3. Lay the Heating Mat:

• Start with the first run of the mat. Cut the mat (leaving the cable intact) at the end of each run, turn it 90° or 180°, and continue laying.
• Once the area is covered, adjust the mat so that the loops are evenly spaced.
• Secure the mat to the subfloor using the special tape provided.

4. Electrical Connections:

• Install an RCD fused spur to power the thermostatic controller/programmer and the mat system.
• Lay the temperature probe from the timer-thermostat onto the floor, position it equidistant between two cable loops, and secure it to the surface.
• Position the unheated power supply cable from the end of the mat system near the thermostat.
• Make all necessary connections to the power supply. Run the heaters for no more than 10 minutes to ensure they are heating up properly.

5. Finish the Flooring:

• Option 1: Apply a thin, self-levelling screed over the mat and allow it to dry completely before laying tiles.
• Option 2: Directly trowel flexible tile adhesive over the mat and lay the floor tiles.
• After grouting, let the tile adhesive cure fully before switching on the system.
